Description

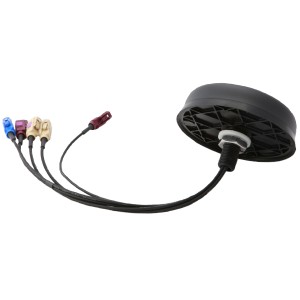

The Antenna-Coach-2L2WG omnidirectional combo antenna for signal enhancement in mobile and WiFi networks and GNSS. It is special designed according to ECE-R 118 burning behaviour and can be used in the interior contruction of motor vehicles. The antenna combines two LTE antennas, two WiFi antennas and an active GPS antenna in a single housing and thus supports MIMO LTE, MIMO WiFi 2.4/5 GHz and also GNSS (GPS & GLONASS). LTE and WiFi are linear and the active GNSS is right hand circular polarized.

The antenna is RoHS, REAch and ECE-R 118 compliant and with protection level IP69K (mounted) and supported temperature range from -40 °C to +85 °C it is suited for indoor and outdoor usage in harsh environments. The antenna can be mounted permanently with screws and five included 3 m cables allow a flexible positioning.
