Antenna-Railway-2LG

Railway Antenna with MIMO LTE + GNSS + EN50155 + 3m Cable

Omnidirectional multiband antenna for signal enhancement in 4G, 3G, 2G, GSM-R networks and active GPS antenna

Cellular MIMO LTE / UMTS / GSM / GSM-R
GNSS Active
Railway EN50155, EN45545



 Product Information Antenna-Railway-2LG

Description

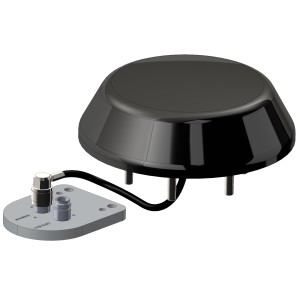

The Antenna-Railway-2LG is an omnidirectional multiband train antenna with certification according to railway standard EN 50155 for mounting on trains and vehicles. The antenna is designed for 2G, 3G, 4G and also GSM-R networks and also GNSS. With protection level IPX9k and supported temperature range from -60 °C to +80 °C, the antenna can be used on top of vehicles for train to ground communications and much more.

The antenna combines multiple antennas in a single housing and thus supports MIMO LTE/UMTS/GSM/GSM-R and GNSS (GPS & GLONASS) with amplifier.
The antenna can be mounted permanently with six bolts and the bundle includes three 3m cables.
