Description

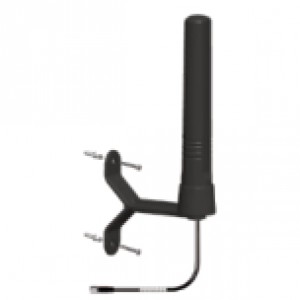

The Antenna-Wall-L is a cellular antenna with vertical polarization which supports LTE, UMTS, GSM as well as WLAN 2.4GHz and can be used for applications like remote monitoring, telematics and much more. With protection level IP54 and supported temperature range from -40°C to +85 °C it is suited for indoor and outdoor use as well.
The included bracket to allows the antenna to be mounted on a wall or panel and the 5m cable allows flexible positioning.
For MIMO applications, 2 antennas are required, with an installation distance ≥ 10 cm at a decoupling of 15 dB.
