NB1610-R

Ethernet 4x Fast Ethernet
IO 2x Digital I/O
Serial / Fieldbus 1x RS-232 Console
Operation Temperature -40°C to +70 °C
Software Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates
Compliance CE (RED)
Modularity Extensions on request



 Product Information NB1601-R

Description

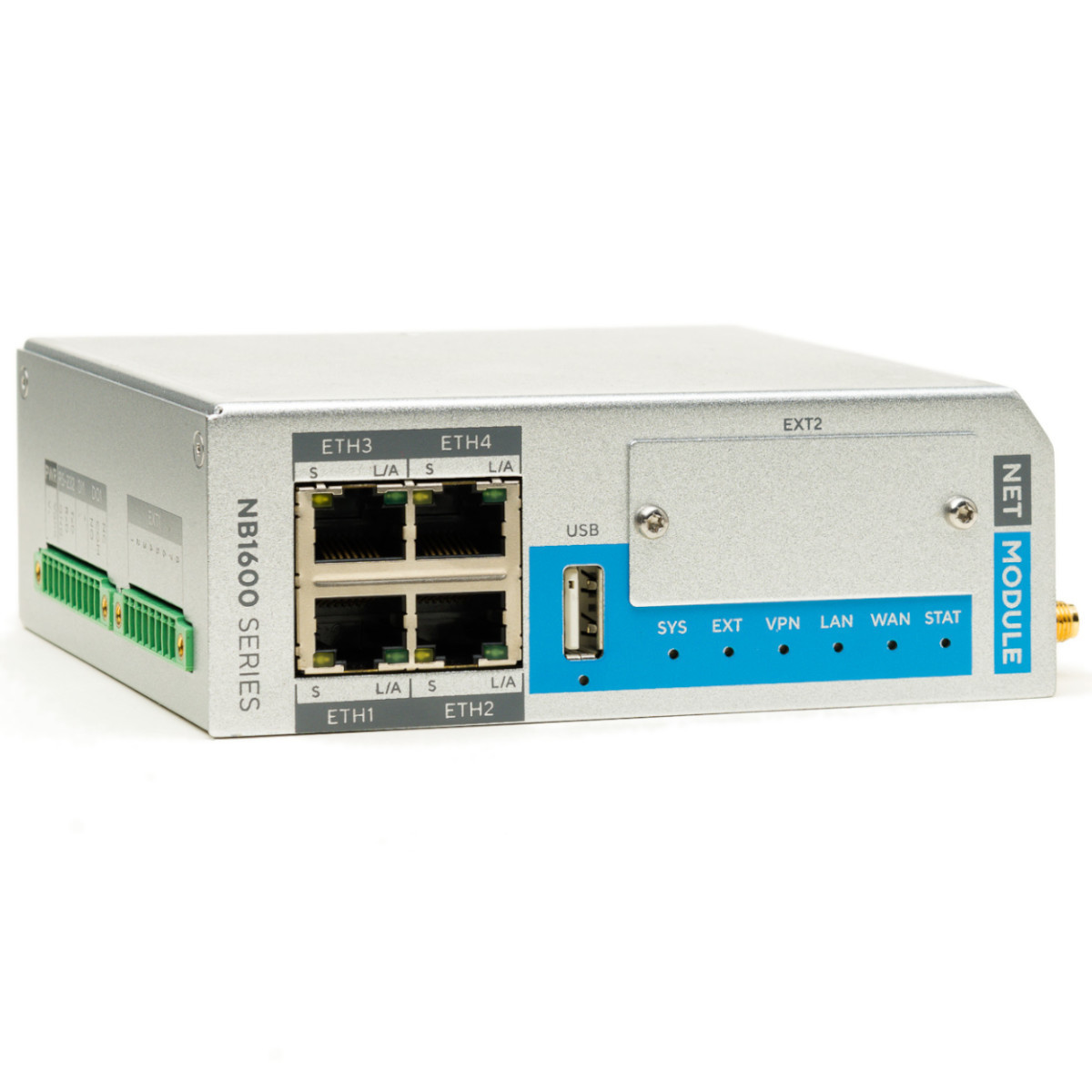

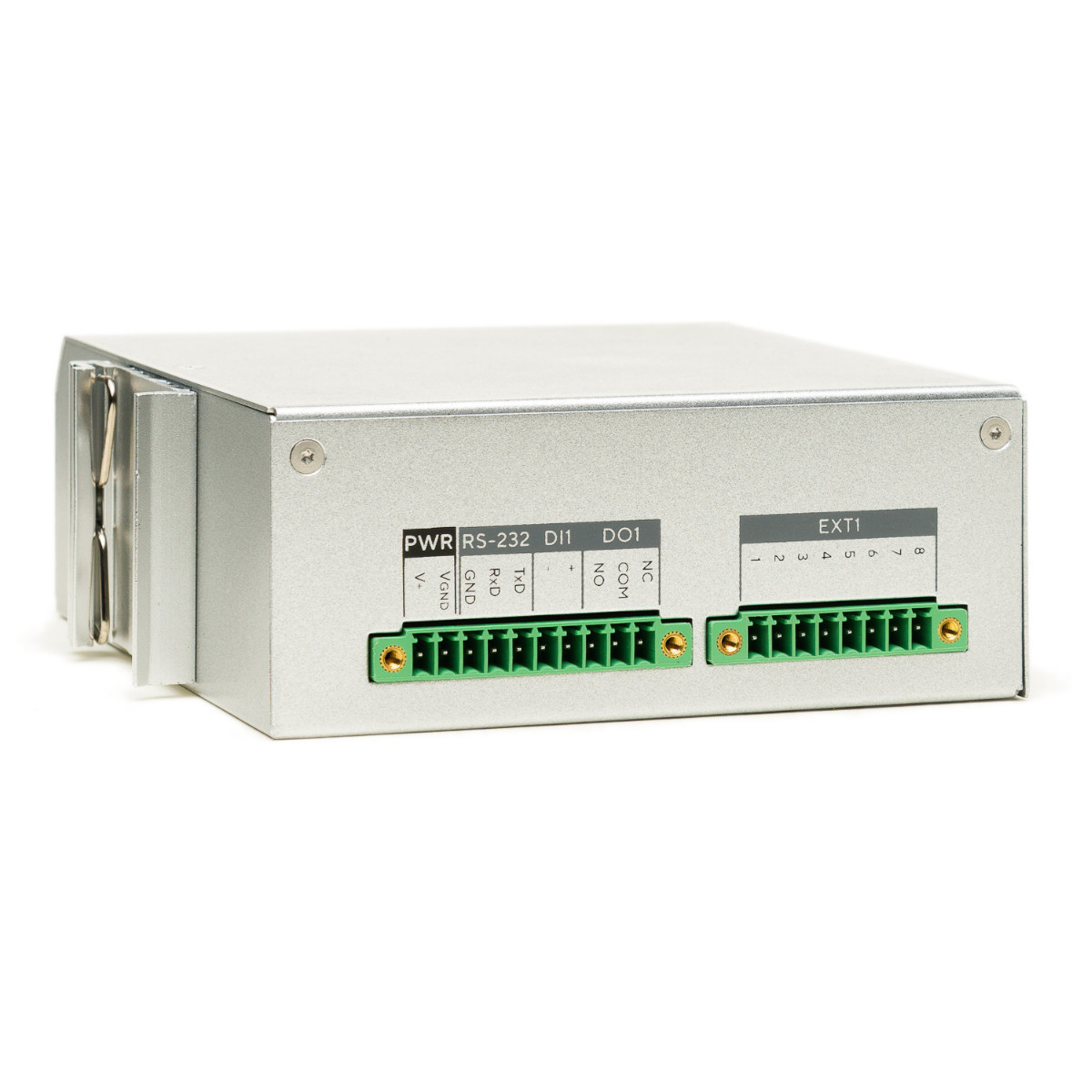

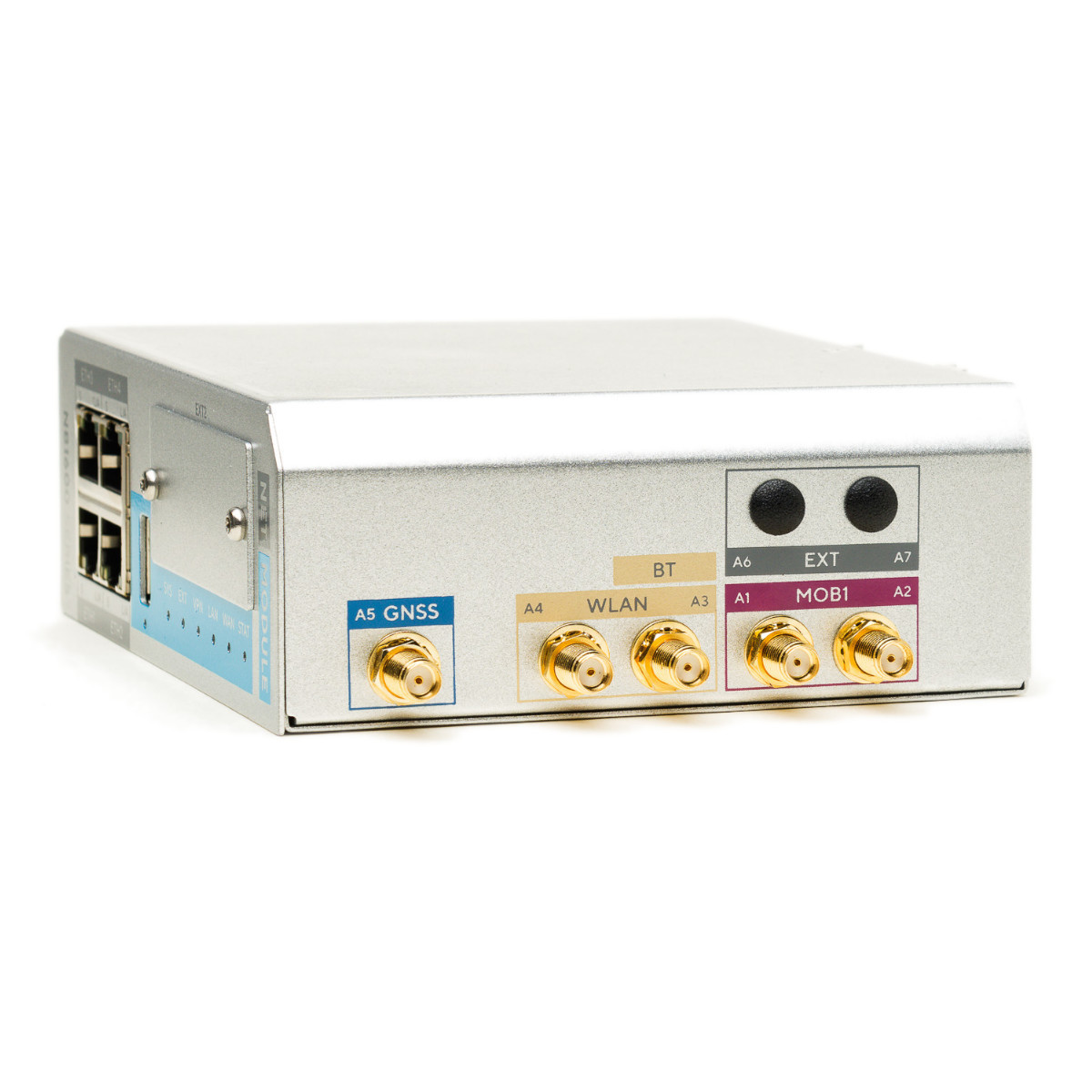

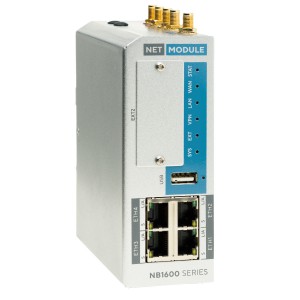

As a special feature, the industrial router offers four Ethernet ports, which are highly configurable. It is also equipped with digital I/Os, serial interfaces and an USB 2.0 port.

The high-quality metal housing, which is suitable for DIN rail mounting, in combination with the supported temperature range of -40 °C to 70 °C, offers the ruggedness required for use in industrial environments. Thus, with the versatile features, the NB1601 is suitable for applications such Industrial Security and Factory Automation.

The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite as well as VPN technologies as OpenVPN. Customer specific software extensions may be implemented via a sophisticated SDK.



 Product Information NB1601 Industrial Routers
