NB1810-LdWac4Ep-G

Mobile / Cellular 1x LTE Advanced, UMTS
SIM 2x Micro SIM
WiFi / WLAN 1x Dual-band IEEE 802.11a/b/g/n/ac, 100 Clients in Access Point Mode
Ethernet 4x Gigabit Ethernet with PoE (4-Port Switch), 1x SFP/Gigabit Ethernet Combo, 1x Gigabit Ethernet
Extended Storage 1x SD Card
Serial / Fieldbus 1x RS-232/485
Positioning Multi-GNSS
Operation Temperature -40 °C to +50 °C
Software Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates
Compliance CE (RED)
Modularity Extensions on request



 Product Information NB1810-LdWac4Ep-G

Description

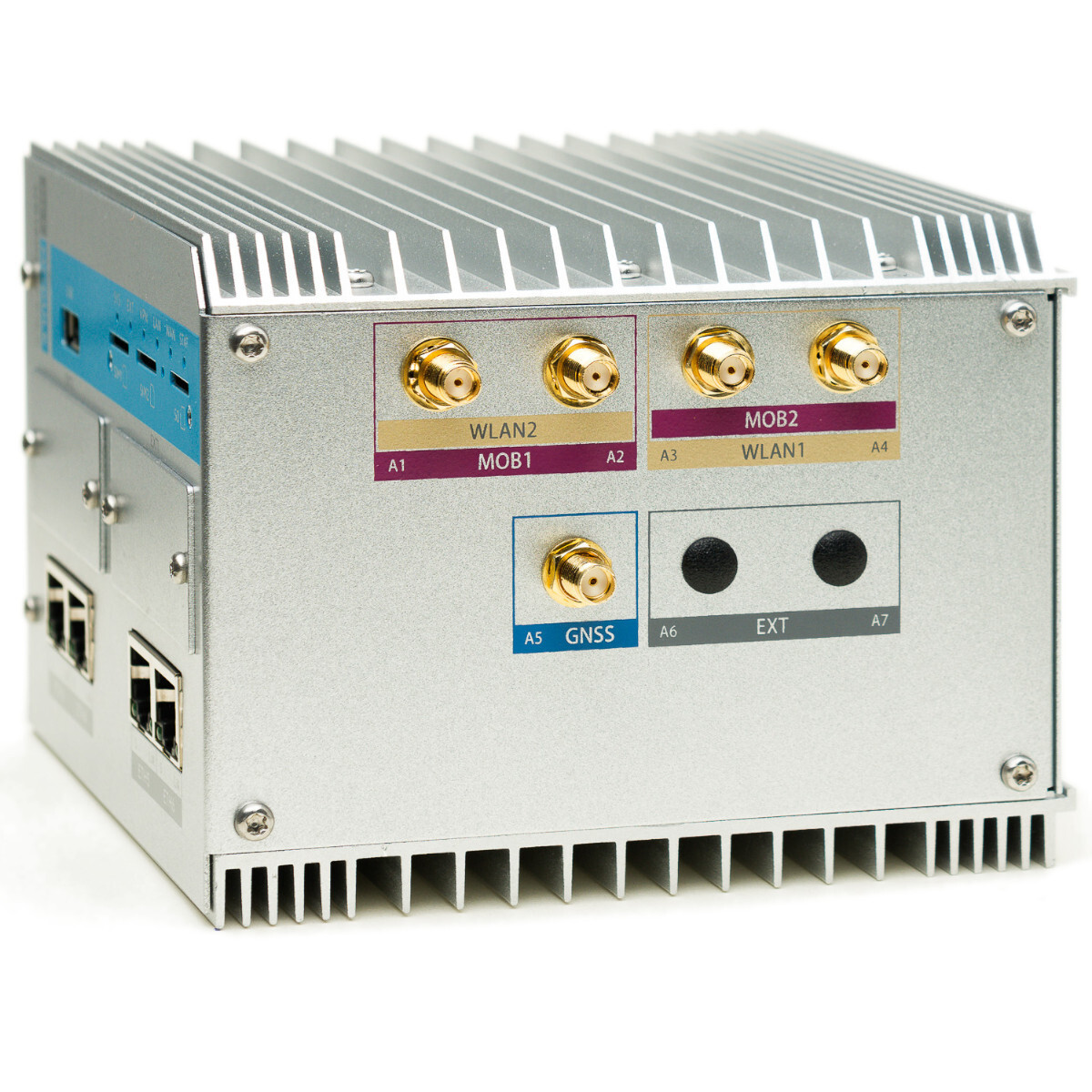

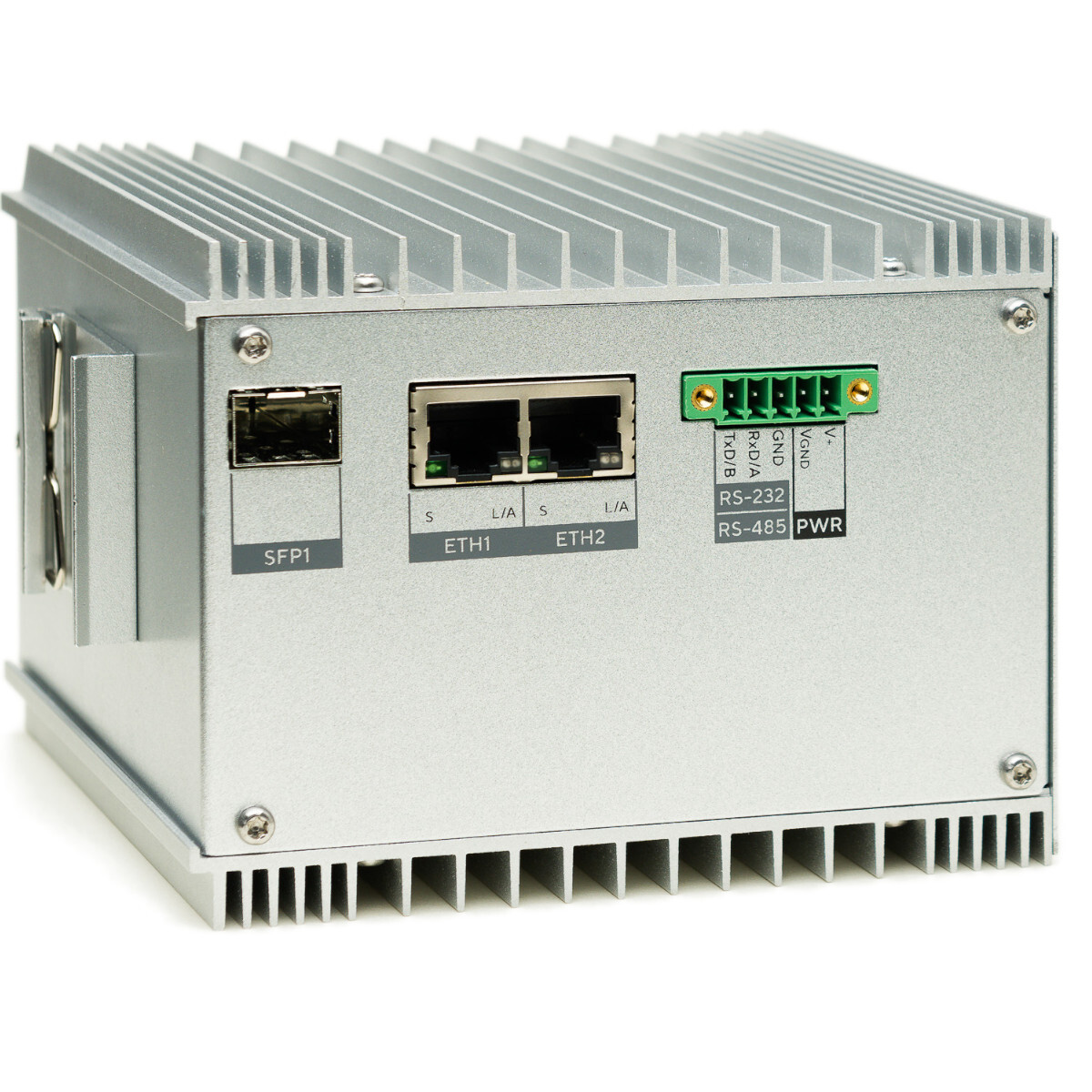

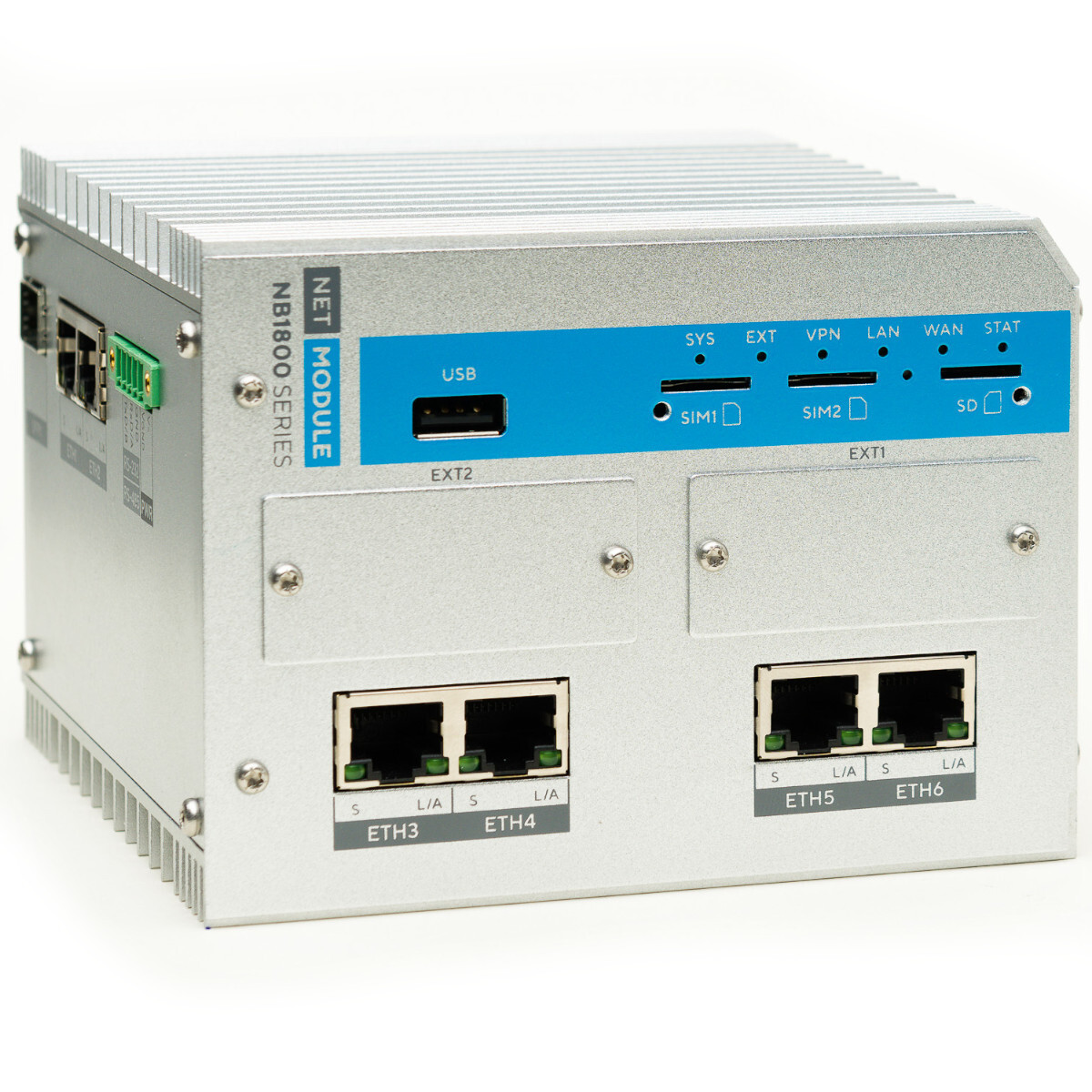

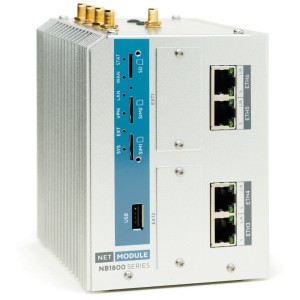

The NB1810 is a powerful and robust cellular router designed for use in industrial environments. The router is equipped with an LTE Advanced module, a WLAN IEEE 802.11ac module and GNSS receiver. It also has a Gigabit Ethernet port and an SFP/GbE combo port, which can be used for fiber or Ethernet, an USB host port and a serial interface with RS-232 or RS-485 mode. The special highlight is the integrated 4-port Gigabit Ethernet switch with PoE+.

DIN rail mounting, the wide operating temperature range and the IP40 metal housing allow reliable operation under harsh conditions. With its approvals, versatile features and performance, it is the ideal device for applications such as Public WiFi, Smart Grid, Factory Automation and CCTV.

The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite as well as VPN technologies as OpenVPN. Customer specific software extensions may be implemented via a sophisticated SDK.



 Product Information NB1810 Industrial Routers
