NB3701-LWac-G

Mobile / Cellular 1x LTE, UMTS, GSM
SIM 2x Mini SIM
WiFi / WLAN 1x Dual Band IEEE 802.11a/b/g/n/ac, 100 Clients in Access Point Mode
Ethernet 5x Fast Ethernet
IO 4x Digital I/O
Power 24 VDC to 48 VDC
Positioning Multi-GNSS
Temperature Range -40 °C to +70 °C, EN 50155 class OT4/ST0
Software Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates
Compliance CE (RED), Railway (EN50155, EN45545)
Modularity Extensions on request


 Product Information NB3701-LWac-G

Description

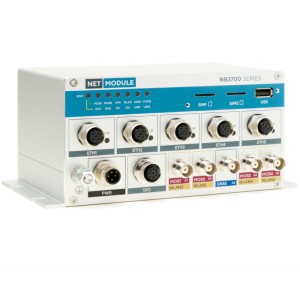

The NB3701 is the compact communication gateway for railway and other applications where similarly high demands are placed on the hardware.

It comes with one LTE modem, a WiFi access point with latest IEEE 802.11ac standard, digital inputs and outputs, GNSS and 5 Fast Ethernet ports. Its small form factor paired with its performance and features make it the ideal device for applications such as mining, traffic management and passenger WiFi.

The router is compliant with the mandatory requirements of EN 50155 and EN 45545-2. Communications interfaces include hardened connectors, including M12 for Ethernet, as well as TNC connectors for antenna connections.

The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite. Customer specific software extensions may be implemented via a sophisticated SDK.



 Product Information NB3701 Railway Routers
