NB3800-LGrWac-G

 Mobile / Cellular 1x GSM-R, 1x LTE, UMTS, GSM
SIM 4x Mini SIM
 WiFi / WLAN 1x Dual Band IEEE 802.11a/b/g/n/ac (Wi-Fi 5), 100 Clients in Access Point Mode
Ethernet 2x Gigabit Ethernet, 3x Fast Ethernet
Power 24 VDC to 48 VDC
Positioning Multi-GNSS
Temperature Range 40 °C to +70 °C, EN 50155 class OT4/ST0
Software Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates
Compliance CE (RED), Railway (EN50155, EN45545), ITxPT optional
Modularity Extensions on request


 Product Information NB3800-2LWacDf-GVi

Description

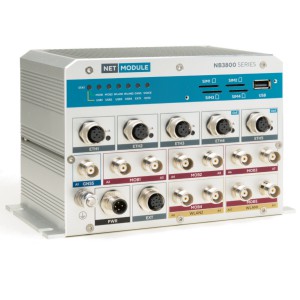

The NB3800 is a high-speed and ruggedized cellular router designed for rail environments. Its rail industry approvals, versatility, security features and performance make it ideal for applications such as fleet management, telematics or ticketing systems.

Its features include one LTE module, one GSM-R modem, one WiFi access point with latest IEEE 802.11ac (Wi-Fi 5) standard, GNSS for positioning, as well as 2 Gigabit and 3 Fast Ethernet ports.

The router is compliant with the mandatory requirements of EN 50155 and EN 45545-2. Communications interfaces include hardened connectors, including M12 for Ethernet, as well as TNC connectors for antenna connections.

The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite. Customer specific software extensions may be implemented via a sophisticated SDK.



 Product Information NB3800 Railway Routers
