NB800-LWWtSu2C

Mobile / Cellular 1x LTE, UMTS, GSM
SIM 1x Micro SIM
WiFi / WLAN 1x Dual-band IEEE 802.11a/b/g/n, 1x Bluetooth Low Energy
Ethernet 1x Fast Ethernet
Serial / Fieldbus 2x CAN active (read and write)
USB USB 2.0 Host
Operation Temperature -40 °C to +70 °C
Software Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates
Compliance CE (RED)
Modularity Extensions on request



 Product Information NB800-LWWtSu2C

Description

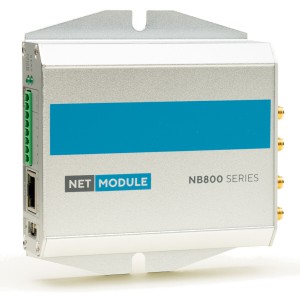

The compact NB800 is the cost-effective solution for a robust Internet connection in an industrial environment. The small form factor and reduced features make it ideal for simple connectivity tasks. Its features include an LTE module for wireless Internet connection, a small WiFi access point with Bluetooth LE, two CAN interfaces and an Ethernet port.

The high-quality metal housing, which is suitable for DIN rail mounting, in combination with the supported temperature range of -40 °C to 70 °C, offers the ruggedness required for use in industrial environments. The NB800 withstands mechanical and thermal stress. This, and its features, make the NB800 suitable for applications such Condition Monitoring, Smart Buildings, Environmental Monitoring, Industrial Security and Factory Automation.

The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite as well as VPN technologies as OpenVPN. Customer specific software extensions may be implemented via a sophisticated SDK.



 Product Information NB800 IIoT Routers
