Description

With the progression of digitalization in daily life also the demand for multi-functional connectivity in vehicles of any kind is rapidly growing. Applications like Telematics, Fleet Management, Asset Tracking and E-Mobility require enormous amounts of data from different sources. Therefore, it is important to collect real-time data about the location, fuel consumption, driver behavior, machine health status and others to optimize business and save costs.

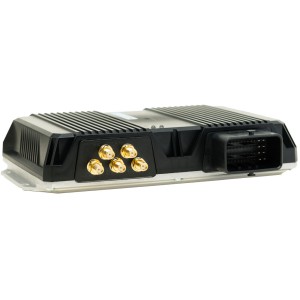

The NetModule NG800 multifunctional IoT-Device, suitable for harsh environments, provides the necessary robust communication between on-board vehicle equipment and cloud applications.

The modular concept of software, electronics and mechanical components to be optimized for specific target applications.

For wireless communication, NG800 is equipped with an LTE modem, 2 SIM slots for failover links, WiFi 802.11a/b/g/n as client or small in- vehicle access point, GNSS dead reckoning, IMU and Bluetooth. A Molex CMC 48 pin connector serves for all wired interfaces such as CAN, Broad-R Reach, Fast Ethernet, DIO or RS-232.

The platform core features can be extended with a customized module to provide additional interfaces or embed parallel CPU subsystems using the Ethernet backplane.

With the robust IP65 protection level using a thermoplastic cover and an aluminum bottom plate, it is made for outdoor/ out of vehicle use. Optional internal LTE, WiFi or GNSS antennas can reduce the overall costs.

The product platform includes the OEM Linux OS which supports all hardware components. Customers can easily implement applications an offer their Telematics products.
