NB2800-2L2WacDf-GVi
| Mobile/Cellular | 2x LTE, UMTS, GSM |
| SIM | 4x Micro SIM |
| WiFi/WLAN | 2x Dual-band IEEE 802.11a/b/g/n/ac, 100 Clients in Access Point Mode |
| Ethernet | 2x Gigabit Ethernet |
| Positioning | Multi-GNSS |
| Power | 12 VDC to 48 VDC, Ignition Sense |
| Extended Storage | 1 TB SSD |
| Operation Temperature | -25°C to +70°C |
| Software | Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, LXC Virtualization, free updates |
| Compliance | CE (RED), Vehicle (UN ECE R10, UN ECE R118), ITxPT optional |
| Modularity | Extensions on request |
Description

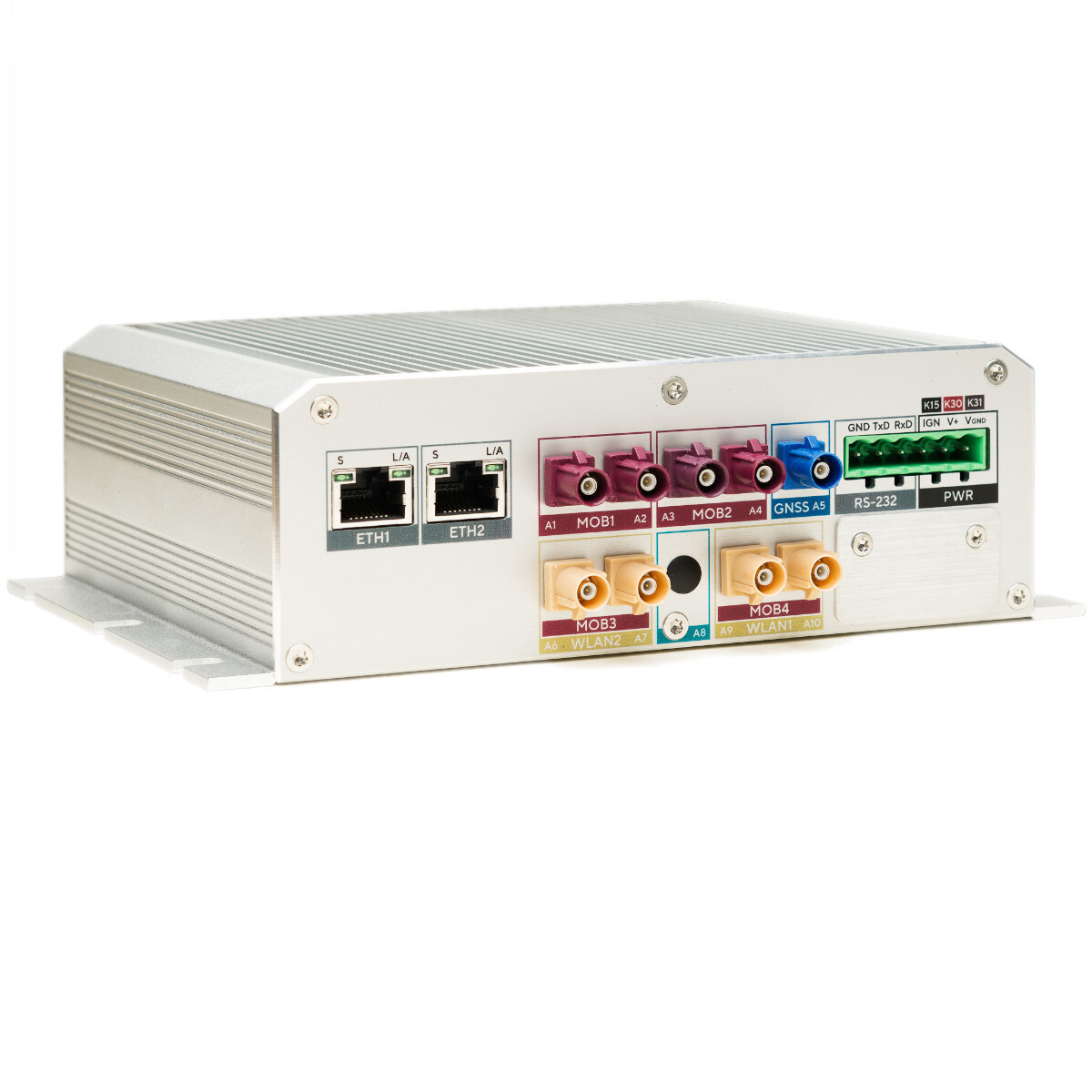

The NB2800 provides in-vehicle wireless Internet access. The router is equipped with multiple LTE Advanced modules that can be bundled, two WiFi access points with the latest IEEE 802.11ac standard, GNSS for positioning, 2 Gigabit Ethernet ports and 1 TB of internal storage capacity. Thanks to the integrated ignition detection, the NB2800 can remain switched on even after the vehicle has been switched off. This allows the safe completion of all tasks.
The router meets the UN ECE R10 (E-Mark) and UN ECE R118 regulations. This, combined with its numerous features and high performance, makes it the ideal device for applications such as Passenger WiFi, Passenger Infotainment and CCTV.
The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite. Customer specific software extensions may be implemented via a sophisticated SDK or Linux containers (LXC).
Product Information NB2800 Vehicle Routers
