NB3800-LWacA-GV
| Mobile / Cellular | 1x LTE, UMTS, GSM |
|
SIM |
4x Mini SIM |
| WiFi / WLAN | 1x Dual Band IEEE 802.11a/b/g/n/ac, 100 Clients in Access Point Mode |
| Ethernet | 2x Gigabit Ethernet, 3x Fast Ethernet |
| Voice | 1x Analog Audio |
| Power | 24 VDC to 48 VDC |
| Positioning | Multi-GNSS |
| Temperature Range | -40 °C to +70 °C, EN 50155 class OT4/ST0 |
| Software | Routing, Network Services, VPN, Firewall, Link Management, Supervisor, Voice Gateway, SDK, free updates |
| Compliance | CE (RED), Railway (EN50155, EN45545), ITxPT optional |
| Modularity | Extensions on request |
Description

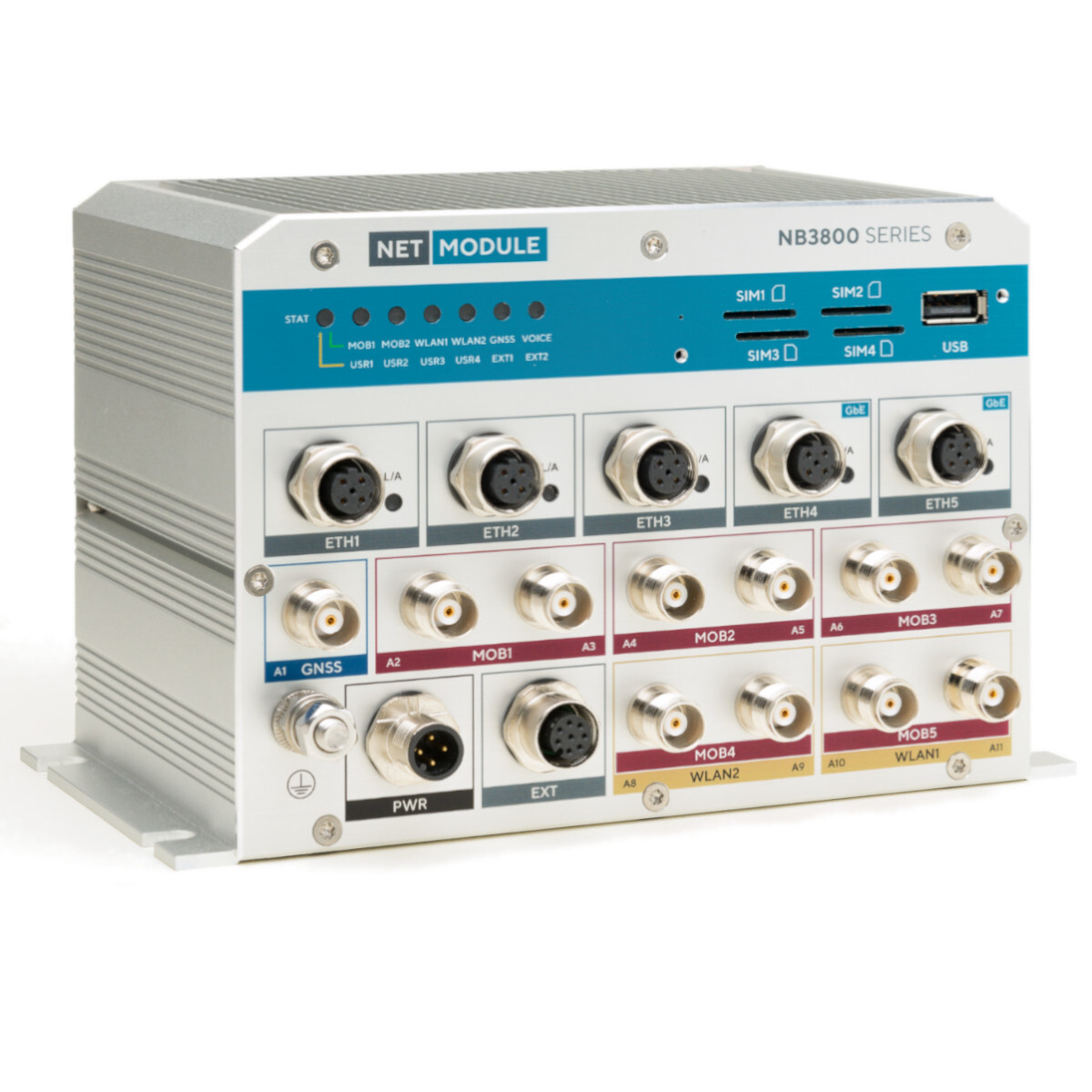

The NB3800 is a high-speed and ruggedized cellular router designed for rail environments. Its rail industry approvals, versatility, security features and performance make it ideal for applications such as fleet management, voice communication or passenger infotainment.
Its features include one LTE module, one WiFi access point with latest IEEE 802.11ac standard, one audio module, Voice license, GNSS for positioning as well as 2 Gigabit and 3 Fast Ethernet ports.
The router is compliant with the mandatory requirements of EN 50155 and EN 45545-2. Communications interfaces include hardened connectors, including M12 for Ethernet, as well as TNC connectors for antenna connections.
The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite. Customer specific software extensions may be implemented via a sophisticated SDK.
Product Information NB3800 Railway Routers
